DCP-CBSS-2 Cobalt SS Surface Mount Point Motor (2 Pack) with Controller and Accessories

Slow action surface mounted point motors for use with all sorts of different gauges from N to O. This pack contains Cobalt-SS Above-Board Point Motors with “Plug & Play” leads to connect to the Control Board. They are ready for installation and connection with everything needed already in the pack. Cobalt-SS can be powered by either DC or DCC systems. Operation is possible by DCC command, conventional switches or both.

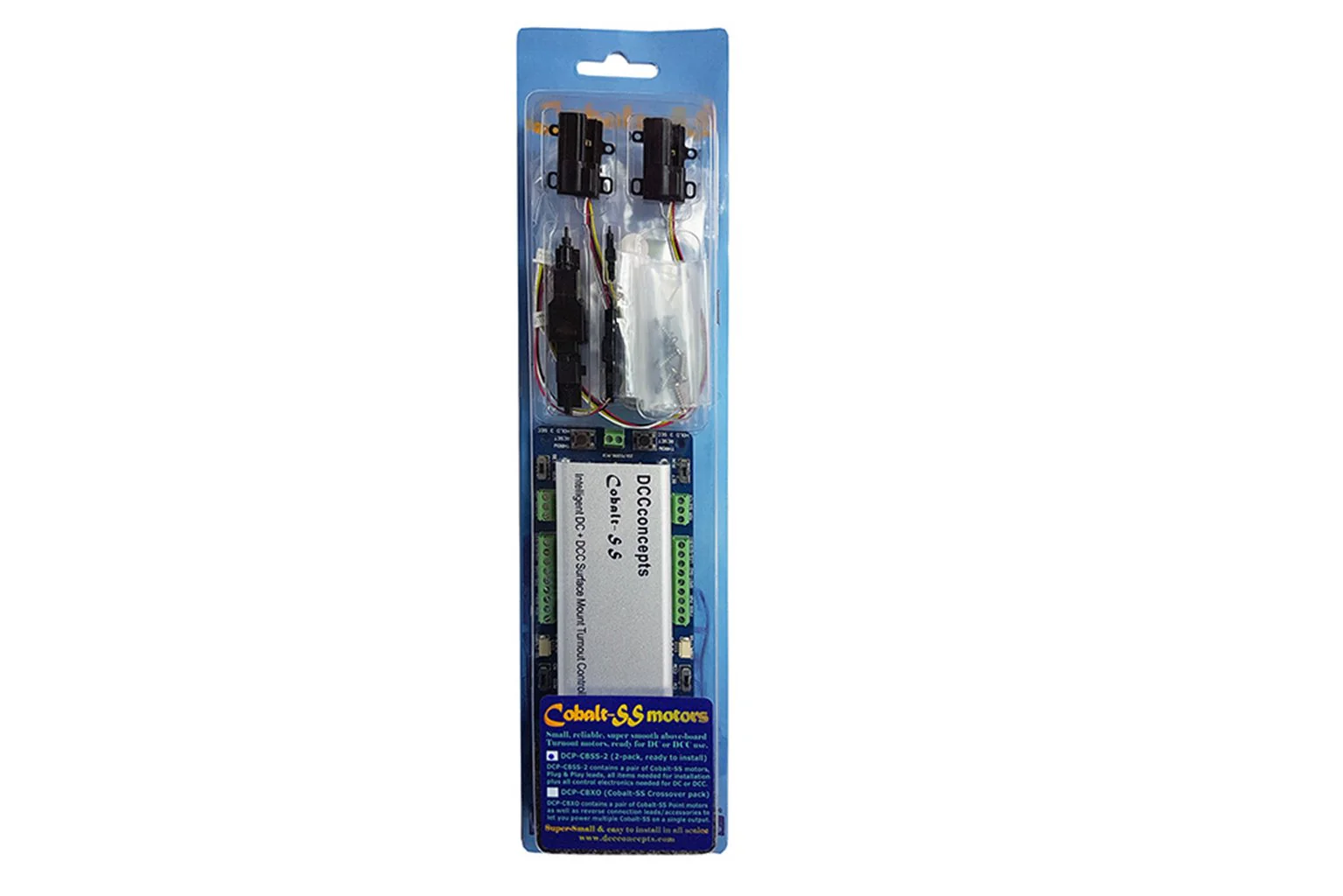

The pack also contains the following accessory leads and accessories:

1x Cobalt-SS Extension Cable (600mm) to enable motors to be mounted further away from the Control Board. 1x Cobalt-SS Y-connection or reverse connection cable to enable two or more motors to be connected to one output on the Control Board. Linkage pack – to connect your Cobalt-SS motor to your turnout. Mounting screws – to install both the Cobalt-SS motors and the control boards.

Motor Size:

• Width 27mm
• Depth 14mm
• Height 11mm

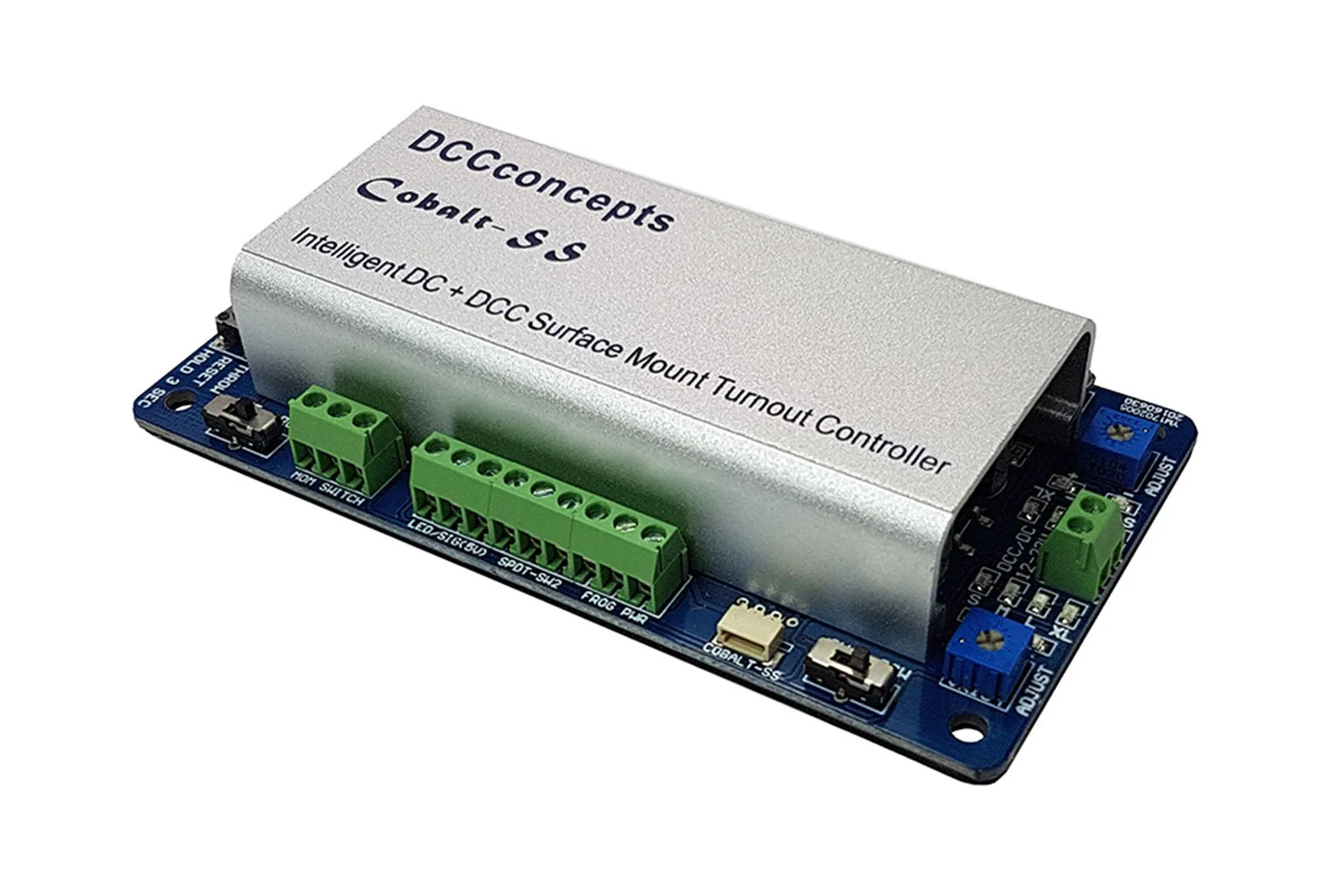

Control Board Size:

• Width 115mm
• Depth 60mm
• Height 25mm
