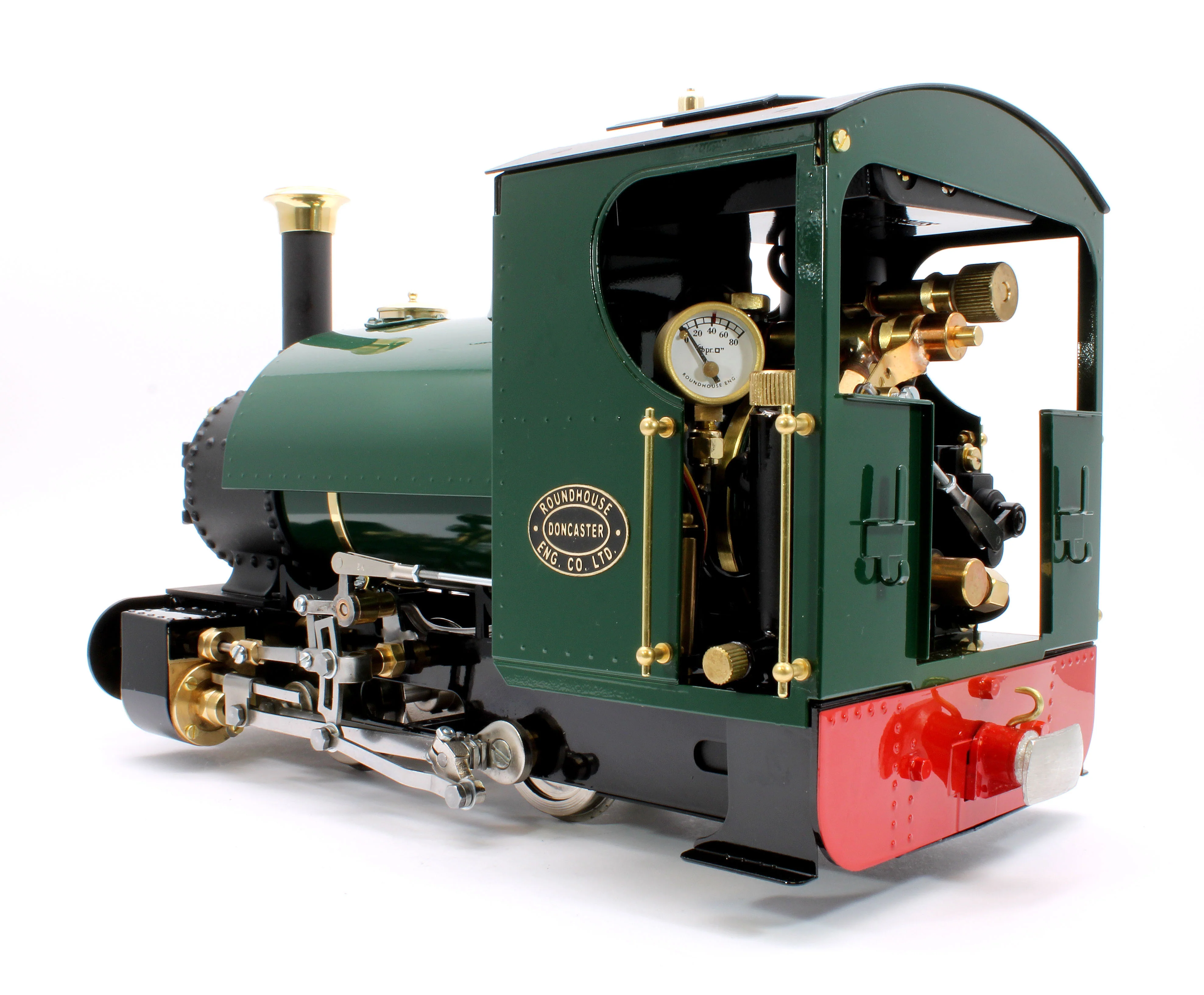

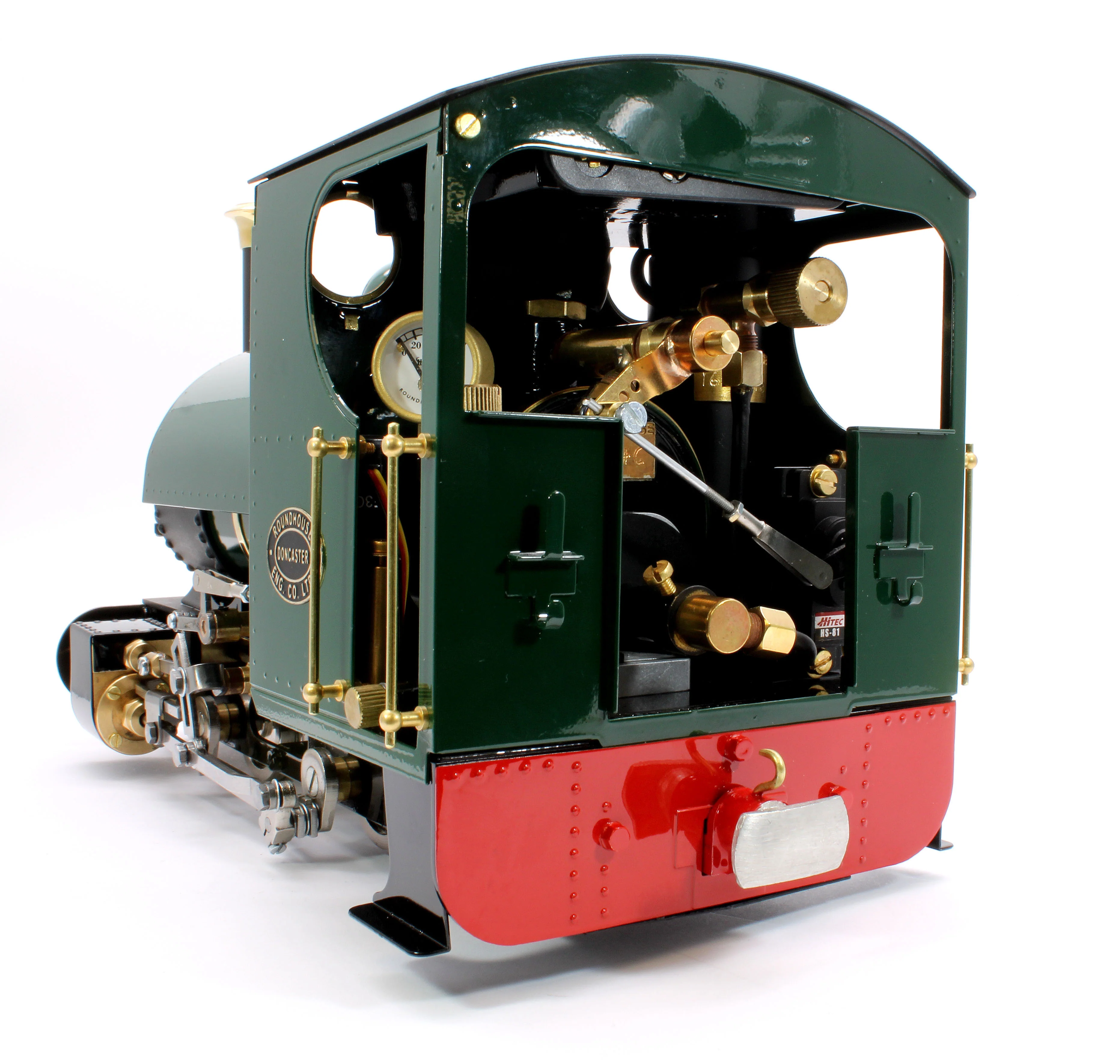

KRC-BRUNGREEN-NI 0-4-0 Saddle Tank 'Katie' Deep Brunswick Green (Radio Control, Uninsulated Wheels) Steam Locomotive

Expected Delivery May 2027 (Subject to Change at Manufacturer's Discretion).

Katie is of typical narrow gauge saddle tank locomotive design. Though not a model of any particular engine, she draws inspiration and features from a number of famous builders like Hunslet, Bagnall and Pecket etc.

Technical specifications for 'Katie':

• Internal gas firing using our ‘FG’ type burner.

• 0-4-0 outside framed chassis with two double acting slide valve cylinders operated by simplified Walschaerts type valve gear.

• Exhaust enhancer.

• Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.

• Dimensions (loading gauge) are :- length 280mm over buffers, width 125mm, height 155mm, weight 2.9 Kg (with r/c).

• Full radio control is available for both regulator and reversing valve gear using 2.4GHz R/C.
• The wheels are adjustable between 32mm and 45mm gauge.

• Minimum radius 2'.


PLEASE NOTE: This model does not come with insulated wheels.
