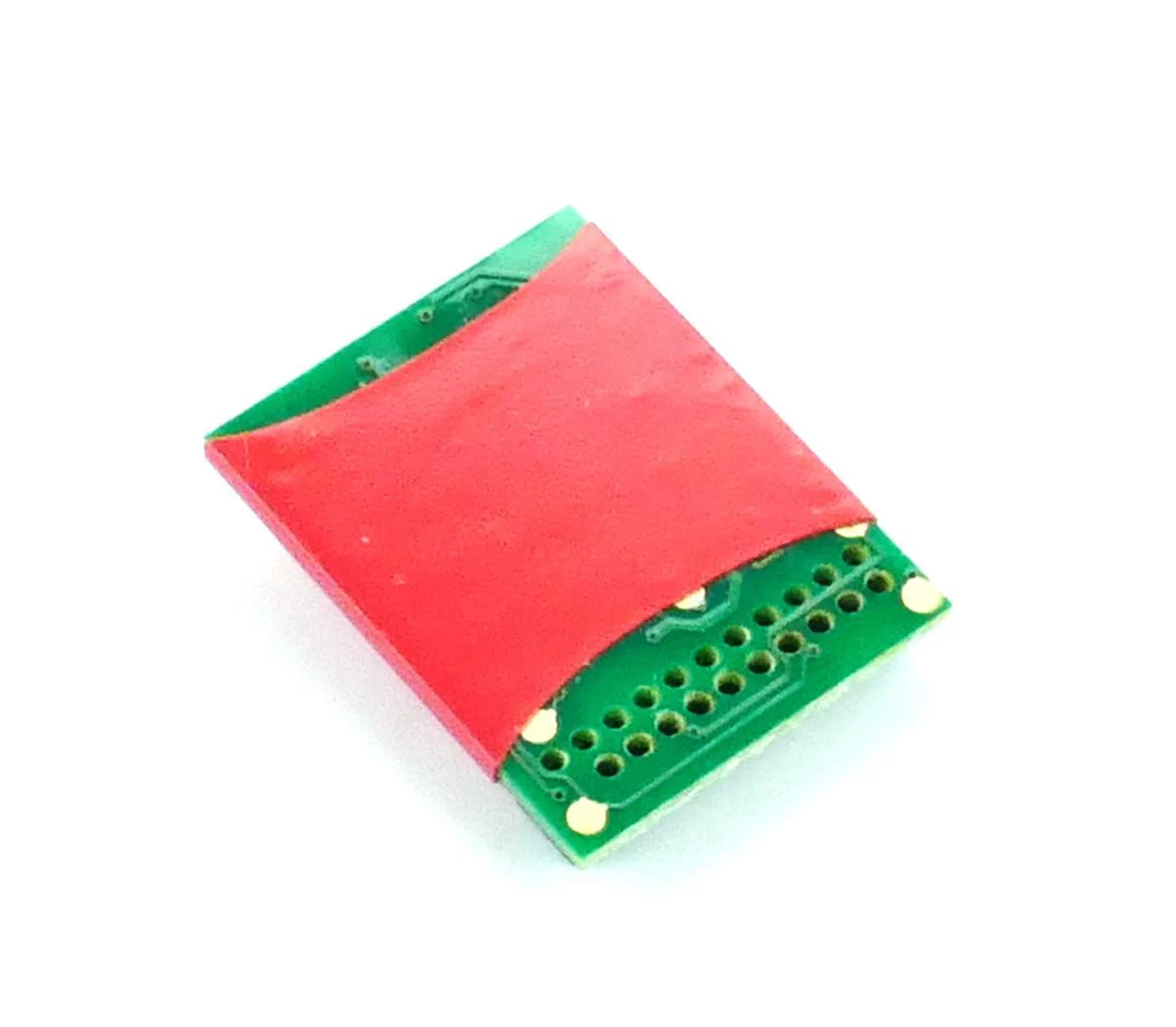

DCC91 Ruby Series 2 Function Standard DCC Decoder 21 Pin

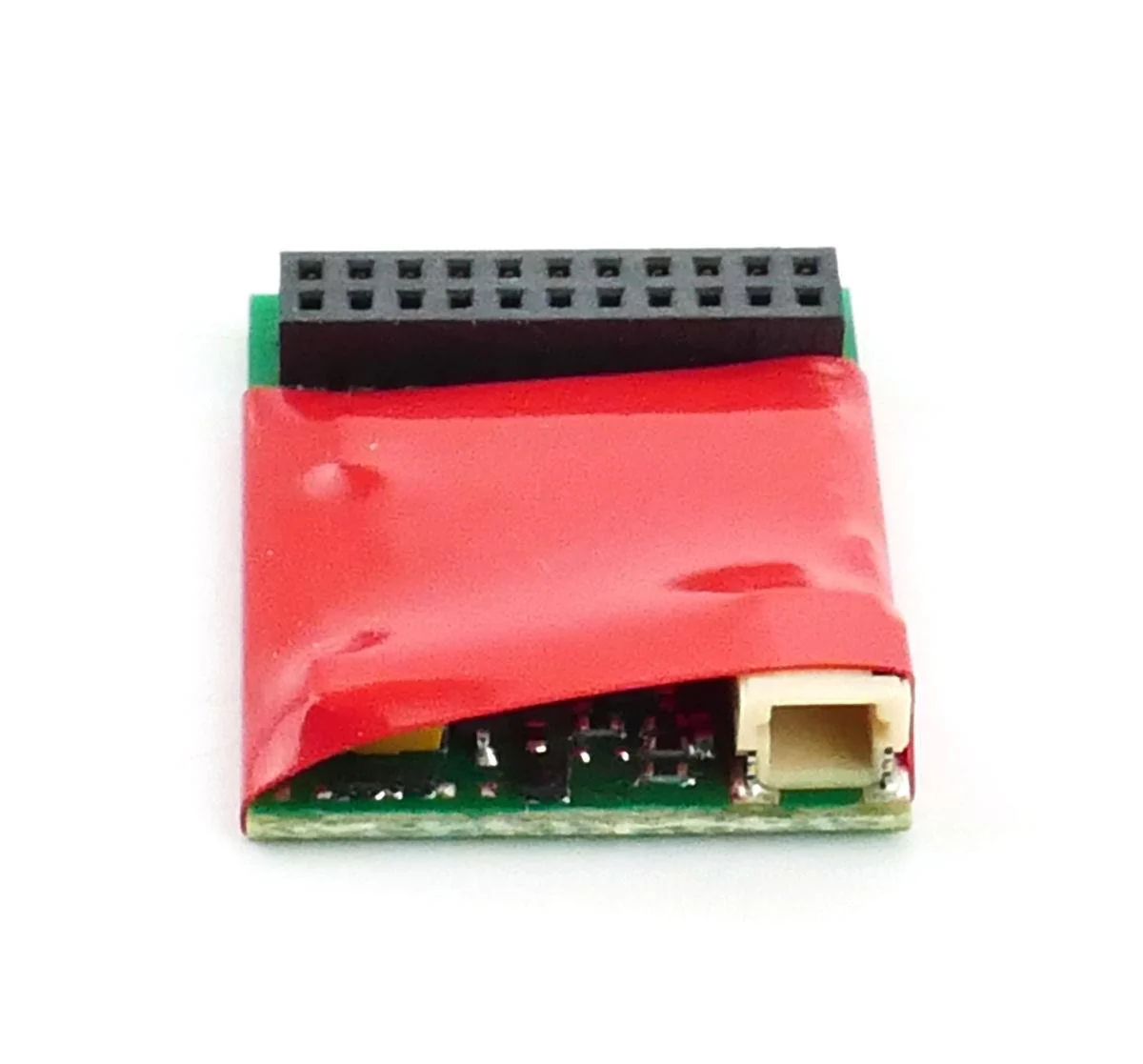

The DCC91 is a direct plug 21 pin decoder. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.

FEATURES

• 2 Digit and 4 Digit Addressing
• 14, 28 or 128 Speed Steps
• Smooth Operation
• Constant Brightness Lighting
• Direct Mode Programming
• Motor Isolation Protection
• Advanced Consisting
• Socket to Add PowerPal

SPECIFICATIONS

• NO. OF PINS 21
• NO. OF FUNCTIONS 2
• SPEED STEPS 14, 28 or 128
• CURRENT RATING 0.5A
• MOTOR CURRENT RATING 1.5A - 2.0A Max

MEASUREMENTS

• LENGTH 30mm
• WIDTH 16mm
• THICKNESS 4mm
