DCC94 Ruby Series 6 Function Pro DCC Decoder 8 Pin

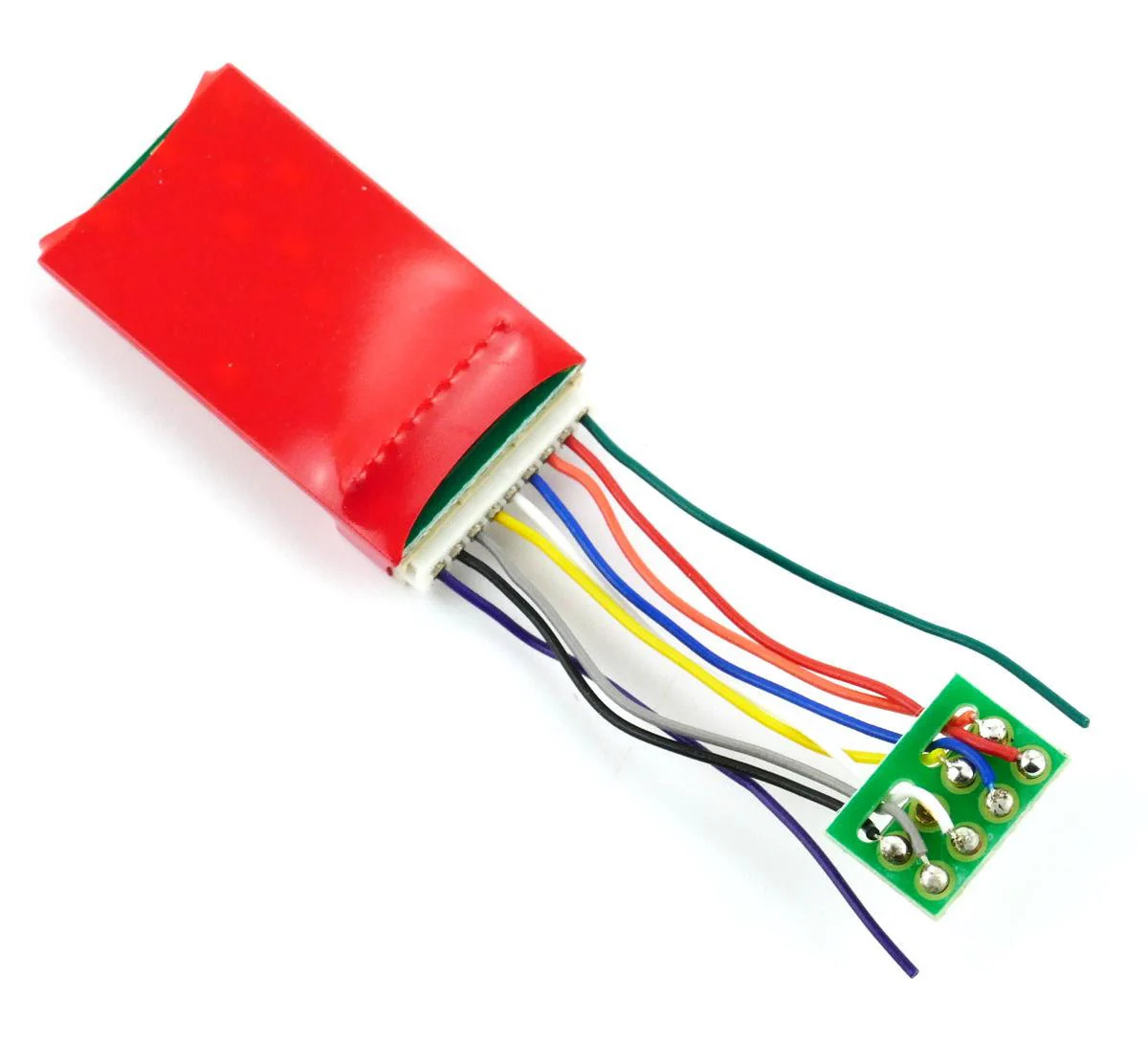

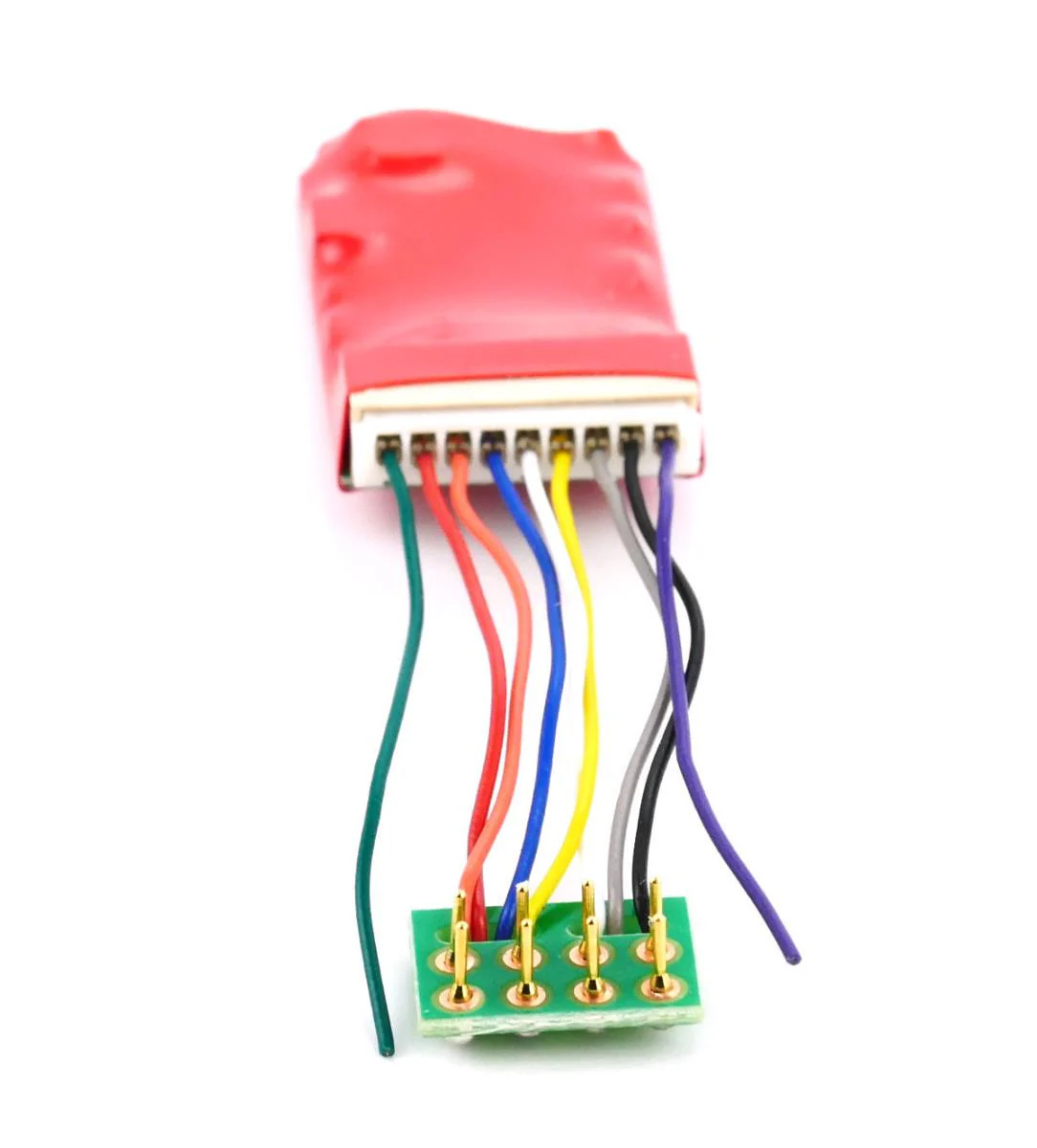

The DCC94 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.

FEATURES

• 2 Digit and 4 Digit Addressing
• 14, 28 or 128 Speed Steps
• Smooth Operation
• Constant Brightness Lighting
• Direct Mode Programming
• Motor Isolation Protection
• Advanced Consisting
• Socket to Add PowerPal

SPECIFICATIONS

• LENGTH 27mm
• WIDTH 17mm
• THICKNESS 7mm
• HARNESS LENGTH 25mm

MEASUREMENTS

• NO. OF PINS 8
• NO. OF FUNCTIONS 6
• SPEED STEPS 14, 28 or 128
• CURRENT RATING 0.5A
• MOTOR CURRENT RATING 1.5A - 2.0A Max
