DCC92 Ruby Series 2 Function Small DCC Decoder 8 Pin

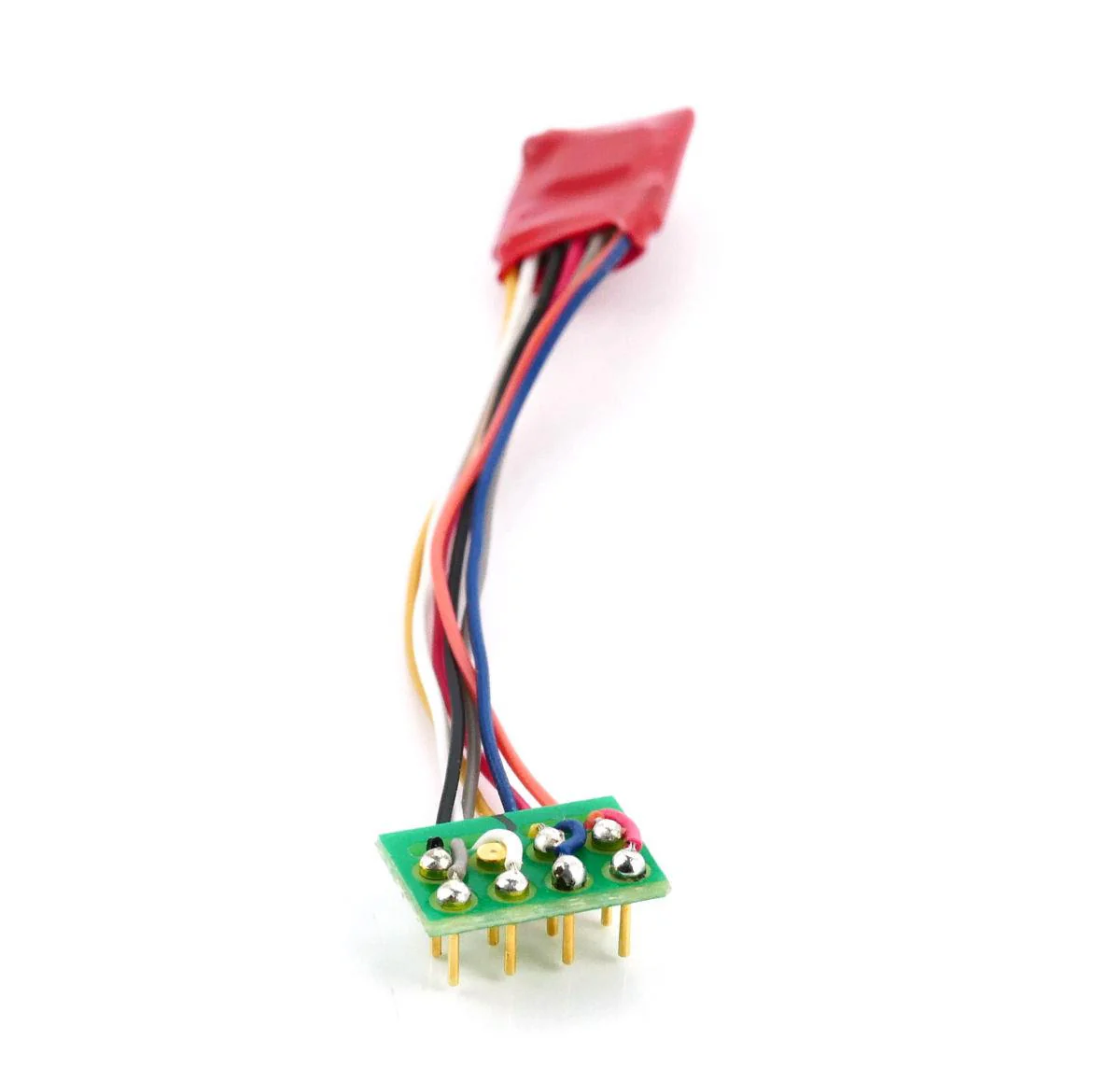

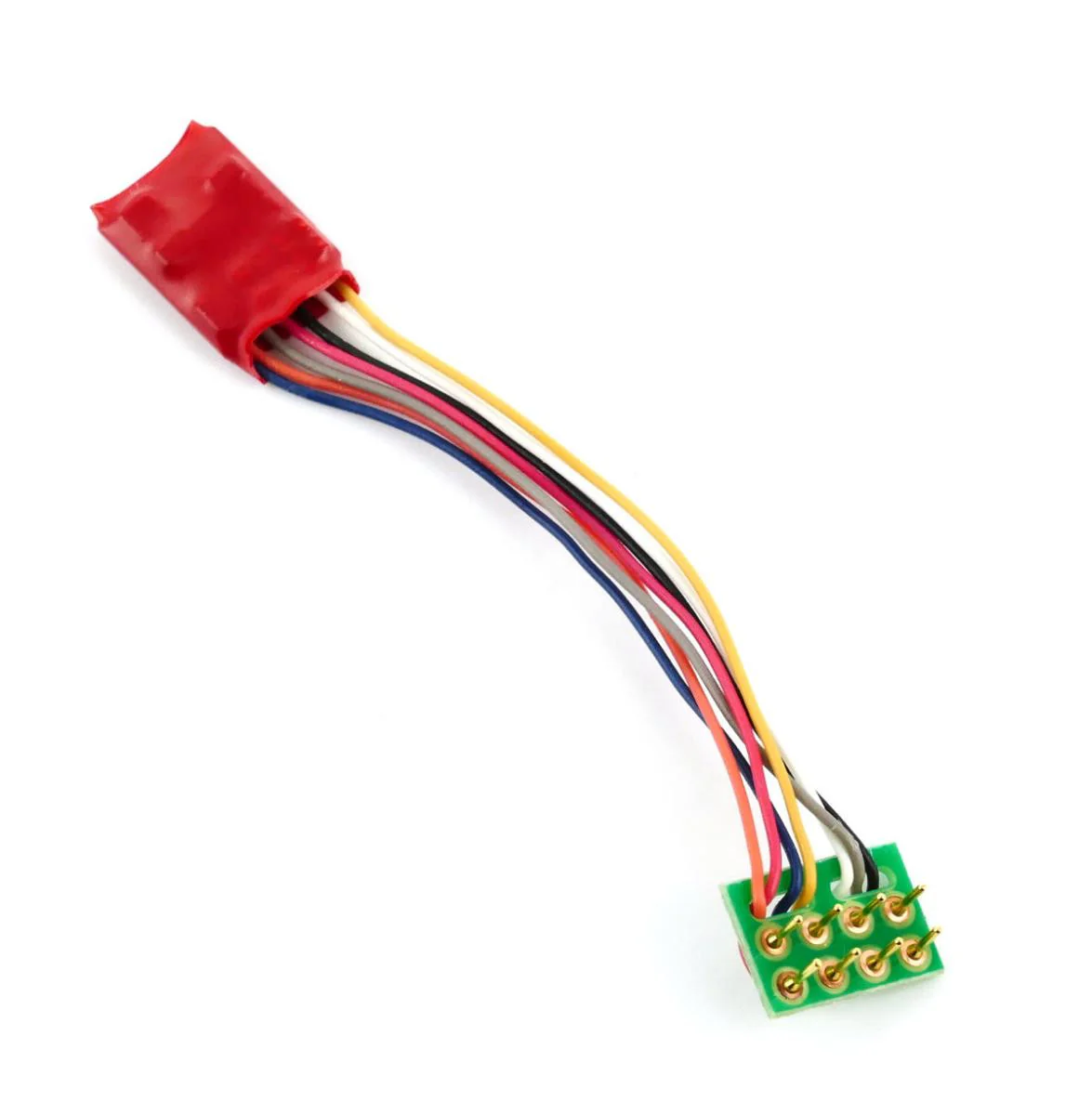

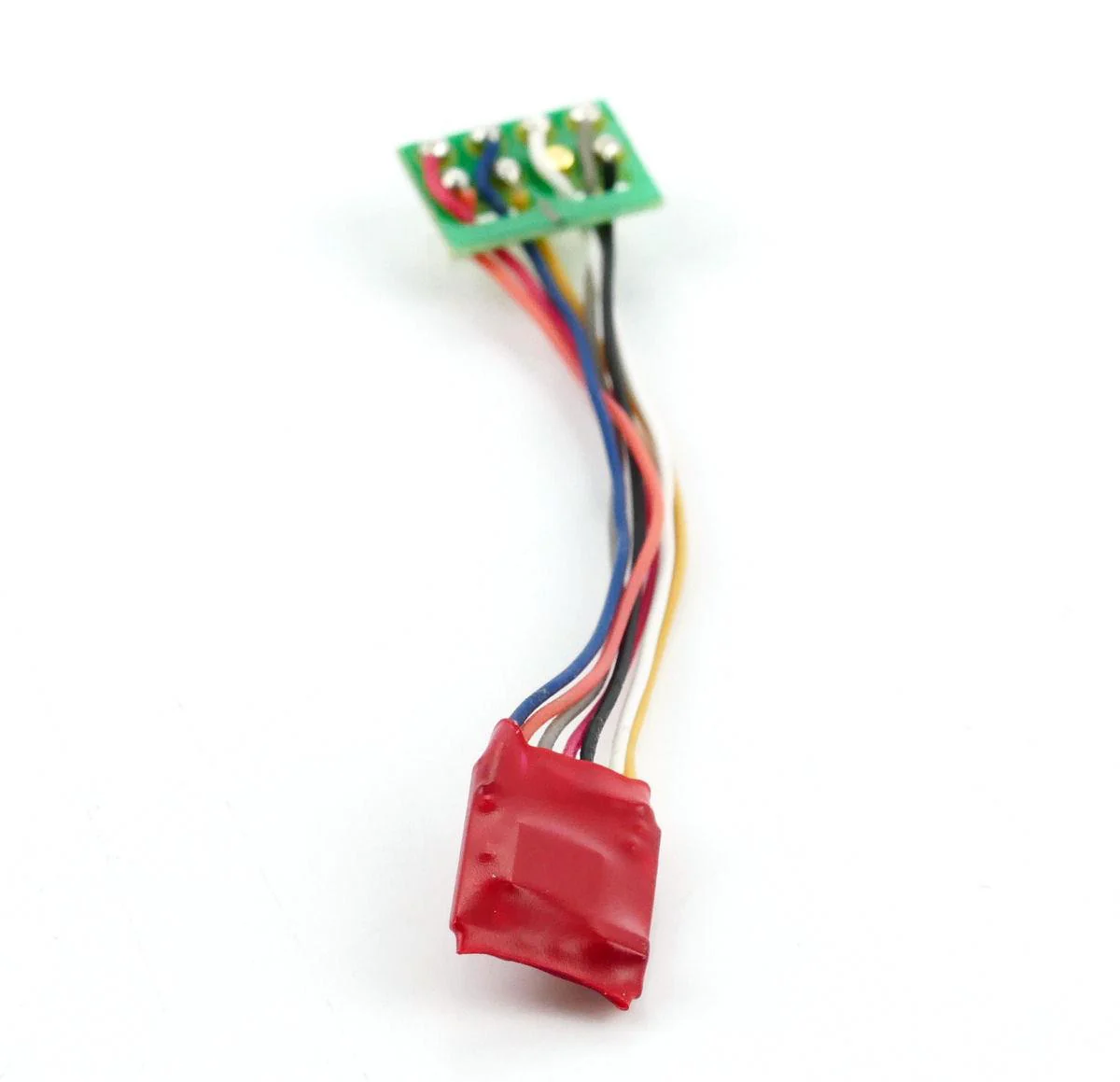

The DCC92 is a 8 pin decoder with a fitted 45mm harness between the pins and the decoder. An ideal decoder for retrofitting into non DCC Ready locomotives.

FEATURES

• 2 Digit and 4 Digit Addressing
• 14, 28 or 128 Speed Steps
• Smooth Operation
• Constant Brightness Lighting
• Direct Mode Programming
• Motor Isolation Protection
• Advanced Consisting

SPECIFICATIONS

• NO. OF PINS 8
• NO. OF FUNCTIONS 2
• SPEED STEPS 14, 28 or 128
• CURRENT RATING 0.5A
• MOTOR CURRENT RATING 1.0A - 1.5A Max

MEASUREMENTS

• LENGTH 12mm
• WIDTH 10mm
• THICKNESS 3mm
• HARNESS LENGTH 45mm
